CUY21EDIT

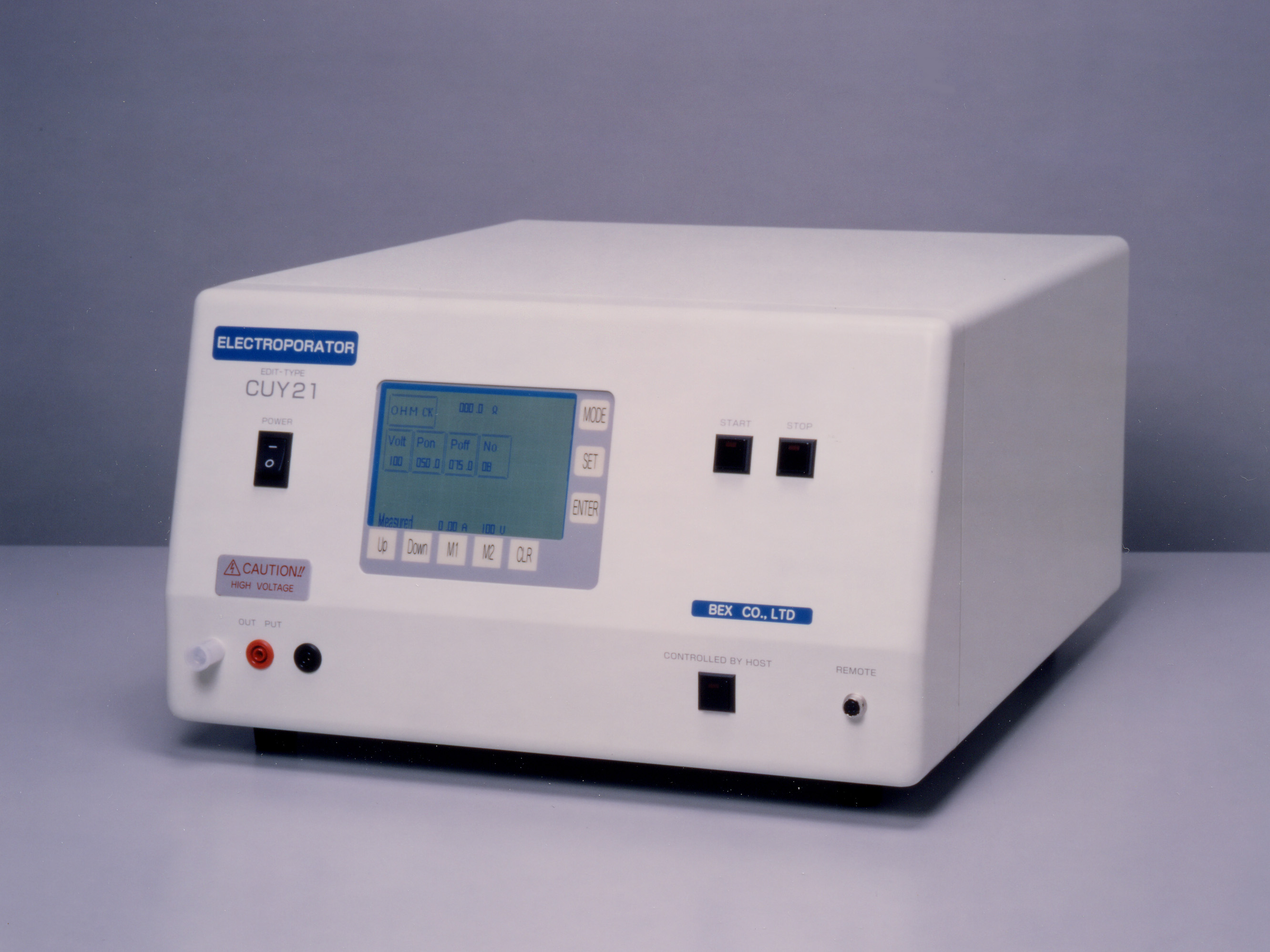

CUY21EDIT In Vivo Square Wave Electroporator

(CUY21 Electroporator)

 In Vivo, In Ovo, In Utero, Ex Vivo Electroporation

(Gene Transfection)

APPLICATIONS

  • Mouse and Rat Tissue (Muscle, Liver, Skin, Testis, Ovary, Retina, Bladder, Kidney) Electroporation
  • Mouse and Rat Brain Electroporation
  • Mouse and Rat Embryo (In Utero) Electroporation
  • Newborn Mouse and Rat (Brain, Retina, Cornea) Electroporation
  • Chick Embryo (In Ovo) Electroporation
  • Tumour (Cancer) Electroporation
  • Plant Seed Electroporation
.

FEATURES

CUY21EDIT

Application Range

The CUY21EDIT Electroporator is designed for In Vivo, In Ovo, In Utero and Ex Vivo Electroporation.


Impedance Measurement

Because in vivo impedance (electrical resistance) is generally less stable than in vitro impedance, an accurate measurement of the target sample resistance prior to the electroporation event is the most important critical success factor for accurate and reproducibe electroporation.  Fluctuations in resistance impact on delivered current values and this negatively impacts reproducibility from one EP event to the next.  The CUY21EDIT automatically measures and displays the impedance of the target sample.    (For example, the resistance of an EP target varies according to physical experimental factors such as the volume of the sample, the buffer used and the distance between the electrodes).  In order to assure delivery of the optimal current, the researcher needs to ascertain the actual resistance of the target sample prior to the EP event.  The CUY21EDIT impedance measurement function enables the researcher to check the sample impedance prior to running the EP program and adjust it if the recorded impedance value deviates from the previously recorded value. This ensures reproducibility from one EP event to the next.

Automated Current Measurement and Display

Consistent delivery of accurate electric current is the primary factor contributing to successful electroporation results.  The CUY21EDIT electropator automatically measures and displays delivered current information.  Access to accurate output current information will assist researchers optimise their electroporation experiments and achieve consistence and reproducible results.


Automatic Voltage Measurement

Actual output voltage can be measured after the electroporation event.  By checking the post EP event voltage, it is eary to determine whether the programmed voltage of the DC pulse was generated.  This is a useful cross-check to establish if something malfunctioned with the device.



Safety function

When performing in vivo electroporations some researchers hold the electrodes by hand and as the conductive part of the electrode is exposed there is a potential safety risk of accidental electrocution. To prevent accidental electrocution, the CUY21EDIT has an integrated safety limit function. The electroporation program automatically shuts down when the current reaches its excess limit. Furthermore, a warning beep sounds prior to pulse output and a red light on the front panel lights up during electroporation.



Accurate Low voltage control & measurement

In our experience, the optimum voltage for most in vivo electroporations is below 100V.  Accurate and low voltage square wave pulses ensure higher transfection efficiency and cause less damage to the electroporation target.  While the voltage range of the CUY21EDIT can be set from 1V to 500V (in 1V increments), we have purposely designed the CUY21EDIT  to output precise low voltage (below 100V) square wave pulses that do not degrade over the course of the pulse.  It is this characteristic that distinguishes the CUY21EDIT from competiting devices.


LED display & ease of operation

The seven independent LED displays (for each of the electroporation parameters) enable program settings and measured values to be checked at a glance. For example, measured voltage and current are displayed immediately after electroporation. Separate numerical keys also make it easy for the operator to edit a saved program or set a new one.



Flexible Parameter Setting



Both pulse length and interval can be set from 0.1-999.9 msec in 0.1msec increments. The number of pulses can be programmed from 1 up to 99 times.



Wide Application Range and an Extensive Range of Compatible Electrodes

Over 250 different electrode configurations have been designed and optimised for use with the CUY21EDIT electroporator.  Such an extensive electrode range extend the application range of the CUY21EDIT device.  This is an important consideration at the point of purchase, as researchers have to be mindful that they may, in the future, wish to expand their field of interest to include other electroporation applications.  Furthermore, custom-made electrodes can be easily designed and manufactured to suit your particular application of interest.



SPECIFICATIONS

DC Waveform


Impedance Measurement

(Ohm Check)

 .

Voltage (Volt)

Pulse Length (P on)

Pulse Interval (P off)

Number of Pulses (No.)

  Square




Max. 18kΩ

 .

1-500V (1V resolution)

0.1-999.9ms (0.1ms resolution)

0.1-999.9ms (0.1ms rsolution)

1-99

Safety limit (High Current)*..







.

Measured Output

(Automatic)

..

Memory

Dimensions, Weight

Power





Voltage Range Current

     1 - 125V: 5.0A

125 - 250V: 2.2A

250 - 500V: 1.0A

 .

Voltage: 1 - 500V

Current:  0.01 - 4.00A

.

2 programs

W390 x D450 x H250 mm, 125.4Kg

115V or 220V, 50/60Hz

* Safety function: When current exceed the limit the electroporation program is automatically shut down.

.

Precision Square Wave Pulse

In addition to the precise current control offered by the CUY21 system, the CUY21 system also delivers a precision Square Wave throughout its pulse (unlike the decaying square wave pulses delivered by competing devices)

Precision Square Wave Pulse for CUY21 Electroporator
 Precision Square Wave Pulse of CUY21 Electroporator



 .

 Improve Electroporation Transfection Efficiency with the CU902 Polarity Exchanger




CU902 Polarity Exchanger
 CU902 Polarity Exchanger



During electroporation, DNA naturally moves to and accumulates at the positive (+) electrode pole (similar to the process in electrophoresis).  However, such accumulation (if not addressed) adversely impacts on electroporation transfection efficiency. The CU902 Polarity Exchanger addresses the sub-optimal effects of accumulation by reversing the electrical polarity of the electrodes during the electroporation event, thus preventing accumulation and ensuring better DNA uptake throughout the whole of the cells.



CUY21 System Multiple Applications and Electrode Selection

Multiple Applications

.



Electrode Selection



APPLICATION

ELECTROPORATION   TARGET

ELECTRODE RECOMMENDATION

Chick and Quail Embryo
(In Ovo)
Neural Tube (HH* stage 10)


Mesencephalon (HH* stage 10)

Diencephalon (HH* stage 10)

.

CUY610 series


CUY611 series

.

Chick Embryo (In Ovo)Optic Vesicl (HH stage 10)


Head Ectoderm (HH stage 10)

Lens (HH stage 10)

Lateral Plate Mesoderm (LPM)

Somitic Mesoderm (HH stage 7-9)

Limb Bud (HH stage 7-9)

Digestive Organ (HH stage 7-9)

Ventricle (HH stage 30)

Retina (HH stage 38-42)

.

CUY610 series


CUY611 series

CUY613 series

CUY614 & CUY615

CUY613 series
CUY614 & CUY615

.

Chick Embryo (Organ Culture)Digestive Organ Epithelial Cell (HH stage 27-28)CUY520P5


.

Chick Embryo (New Culture)Gastrulation (HH stage 3-7)


Neural Plate (HH stage 3-7)

.

CUY701 series combination (e.g., CUY701P2L and CUY701P2E)


.

Mouse Embyo (In Utero)Cerebral Cortex, All Area (E12.5)


Cerebral Cortex, All Area (> E13.5)

Cerebral Cortex, Specific Area (> E13.5)

Forebrain Ventricle (E14)

Spinal Cord (E10.5)

CUY650P3



CUY650P5, P7

CUY650P0.5-3, CUY650P1-5

CUY650P1-5

CUY651P

.

Mouse and Rat
(Whole Embryo Culture)
Neural Tube (Mouse: E9.5, Rat: E11.5)


Neural Plate (Mouse: E7-13

Metencephalon (Mous: E7-13)

Somite (Mouse: E7-13)

Telencephalon (Mouse: E7-13)

CUY520P15, P20, P25


CUY520P15, P20, P25

.

CUY650P3, P5, P10

.

.

Adult Mouse, Rat, Rabbit and Dog (In Vivo)Skin (Epidermis, Dermis, Hypodermis)CUY663 series


.

Adult Mouse, Rat, Rabbit, Dog and Monkey (DNA Vaccine)Posterior Region of Leg


Calf

Anterior Tibial Muscle

CUY560-3, 5 (Injection)


CUY650P3, P5 (Holding)

CUY647P10X5 (Holding)

.

Adult Mouse and Rat (In Vivo)Kidney


Liver

Vessel

.

CUY650P5


CUY650P10

CUY250 series combination

.

Adult Mouse and Rat (In Vivo)Bladder


Testis

Ovary

.

CUY647P5X10


CUY650P5, P10

.

Adult Mouse and Rat (In Vivo)Synovial Membrane


Knee Cartilage

CUY650P5, P10



.

Adult Mouse and Rat (In Vivo)BrainCUY200S


*CUY21SC is recommended.

.

Newborn Mouse and Rat
(In Vivo)
Retina (P0-P3)


Cornea

CUY675P3, P5


CUY670, CUY671P1

.

Newborn Mouse and Rat
(In Vivo)
Brain Ventricle (P0-P3)


Brain Ventricle (P4-P8)

CUY650P3, P5


CUY650P7

.

Tissue Fragment (Ex Vivo)Brain Slice, Tissue Slice, Skin SliceCUY701series combination (e.g., CUY701P2L and CUY701P2E)



Bee (In Vivo)BrainCUY567


.

SilkwormEggCUY495P10


.

Xenopus Embryo (In Vivo)Stage 12.5CUY700P20 & CUY195P0.3


.

FishEggCUY535, CUY536


CUY537P0.3, P0.5

.

Plant (In Vivo)Seed EmbryoCUY495P10
*CUY21EDIT is recommended.


.

Adherent Cellhttp://www.nepagene.jp/image/spacer.gifCUY512-5, CUY513-5


.

Mammalian Adherent Cell
(Single Cell)
http://www.nepagene.jp/image/spacer.gifCUY230


*CUY21SC is used.

.

Plant Protoplast (Single cell)http://www.nepagene.jp/image/spacer.gifCUY230*CUY21SC is used.


.

* HH: Hamburger Hamilton


Electrodes for CUY21SC

We stock over 250 different original electrode configurations specifically designed for use with the CUY21 electroporator range.  This significantly expands the experimental applications range of our clients.

We also offer a customized electrode design service.  We can design and manufacture electrodes to your particular research requirements.

Please feel free to contact us

If you see an electrode you want more information on, please enter the product code (e.g., CUY650P5) into the 'Search by product code, name or application' search box on the top left hand side of the webpage and click on the 'Search' button.



CUY21 EDIT Electroporator


CUY21 Illustrated Applications

CUY21 Electrode Recommendations

.

CUY21 Electroporation Publications - Full List

CUY21 Electroporation Publications - by Research Interest
